The configuration used to control the behavior of controllers using serial communications. More...

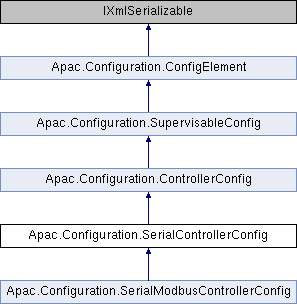

Inheritance diagram for Apac.Configuration.SerialControllerConfig:
Public Member Functions | |
| SerialControllerConfig (string name, string configType, string type, string description, bool prioritized, string port, int baud, int dataBits, Parity parity, StopBits stopBits, Handshake handshake, string dataStoreRef, ushort resolutionBits, ushort freqSeconds, ushort delayMilliseconds) | |
 Public Member Functions inherited from Apac.Configuration.ControllerConfig | |
| ControllerConfig (string dataCompilerRef, ushort inputResolutionBits, ushort freqSeconds, ushort delayMilliseconds, string name, string configType, string type, string description, bool prioritized) | |
| Public Member Functions inherited from Apac.Configuration.SupervisableConfig | |
| SupervisableConfig () | |
| Initializes a new instance of the SupervisableConfig class. More... | |
| SupervisableConfig (string name, string configType, string type, string description, bool prioritized) | |
| Initializes a new instance of the SupervisableConfig class. More... | |
| Public Member Functions inherited from Apac.Configuration.ConfigElement | |
| ConfigElement () | |
| Initializes a new instance of the ConfigElement class. More... | |
| ConfigElement (string name, string description, bool enabled) | |
| Initializes a new instance of the ConfigElement class. More... | |
| override int | GetHashCode () |
| Returns a hash code for this instance. More... | |
| override bool | Equals (object compareTo) |
| Determines whether the specified System.Object is equal to this instance. More... | |
| System.Xml.Schema.XmlSchema | GetSchema () |
| This method is reserved and should not be used. When implementing the IXmlSerializable interface, you should return null (Nothing in Visual Basic) from this method, and instead, if specifying a custom schema is required, apply the T:System.Xml.Serialization.XmlSchemaProviderAttribute to the class. More... | |
| void | ReadXml (System.Xml.XmlReader reader) |
| Generates an object from its XML representation. More... | |
| void | WriteXml (System.Xml.XmlWriter writer) |
| Converts an object into its XML representation. More... | |
Protected Member Functions | |
| override void | OnWriteXml (System.Xml.XmlWriter writer) |
| Called when serializing via XML. More... | |
| override void | OnReadXml (System.Xml.XmlReader reader) |
| Called when deserializing via XML. More... | |
| Protected Member Functions inherited from Apac.Configuration.SupervisableConfig | |
| override void | OnWriteXml (System.Xml.XmlWriter writer) |
| Called when serializing via XML. More... | |
| override void | OnReadXml (System.Xml.XmlReader reader) |
| Called when deserializing via XML. More... | |
Properties | |
| string | Port [get, set] |
| int | Baud [get, set] |
| int | DataBits [get, set] |
| Parity | Parity [get, set] |
| StopBits | StopBits [get, set] |
| Handshake | HandshakeControl [get, set] |
| Properties inherited from Apac.Configuration.ControllerConfig | |
| string | CompilerRef [get, set] |
| Gets or sets teh name of the supervisable component responsible for compiling the data gathered by the controller. More... | |
| ushort | InputResolutionBits [get, set] |
| Gets or sets the number of bits of resolution provided by the input registers of the device being controlled. Default value is 10 bits. More... | |
| ushort | FrequencySeconds [get, set] |
| Gets or sets the polling frequency in seconds. More... | |
| ushort | DelayMilliseconds [get, set] |
| Gets or sets the polling delay in milliseconds. This is the amount of time the thread sleeps before it checks its schedule again. Setting this to a higher number limits context switches, but decreases the resolution at which the schedule will be kept (ie: it is more likely to over-shoot the schedule if this is a big number). A lower number makes it more likely to hit the schedule accurately, but is also more CPU-intense. This is a variable so large polling frequencies, like 300, can be used and at the same time a better pause interval can be set so the poller is as efficient as possible, without constantly grinding to check if the scheduled time has arrived. More... | |
| Properties inherited from Apac.Configuration.SupervisableConfig | |
| string | TypeName [get, set] |
| Gets or sets the name of the type of the supervisable component. More... | |
| string | TypeForConfig [get, set] |
| Gets or sets the type for the SupervisableConfig. More... | |
| bool | Prioritized [get, set] |
| Gets or sets a value indicating whether the Apac.ISupervisable is prioritized. More... | |
| ReferenceConfigCollection | References [get] |
| Gets the references. More... | |
| Properties inherited from Apac.Configuration.ConfigElement | |
| virtual bool | IsValid [get] |
| Gives a way for subclasses to determine validity. More... | |
| string | Name [get, set] |
| Gets or sets the name property setting. More... | |
| string | Description [get, set] |
| Gets or sets the description property setting. More... | |
| bool | Enabled [get, set] |
| Gets or sets a value indicating whether this ConfigElement is enabled. More... | |
| log4net.ILog | Log [get] |
| Provides a log4net.ILog instance for use by the whole class hierarchy. More... | |
Detailed Description
The configuration used to control the behavior of controllers using serial communications.
Member Function Documentation
◆ OnReadXml()
|
inlineprotectedvirtual |
Called when deserializing via XML.
- Parameters
-
reader The reader.
Reimplemented from Apac.Configuration.ControllerConfig.
Reimplemented in Apac.Configuration.SerialModbusControllerConfig.
◆ OnWriteXml()
|
inlineprotectedvirtual |
Called when serializing via XML.
- Parameters
-
writer The writer.
Reimplemented from Apac.Configuration.ControllerConfig.
Reimplemented in Apac.Configuration.SerialModbusControllerConfig.
The documentation for this class was generated from the following file:
- /var/lib/jenkins/workspace/apac/APAC/APACCore/Configuration/SerialControllerConfig.cs
