This class provides the data structure for both outgoing (queued) and archived messages. More...

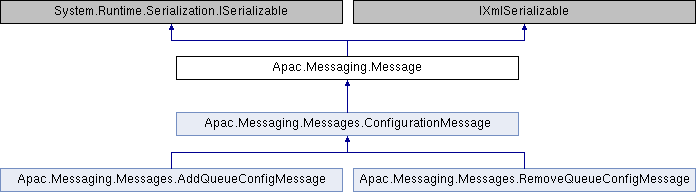

Inheritance diagram for Apac.Messaging.Message:

Public Member Functions
	Message (string queue, MessageType type, string subject, string body, string initiatingProcess, string initiatingUser)
	Creates a new message instance. More...

	Message ()
	Parameterless constructor provided for XML serialization. More...

void	AddProperty (string propertyName, object data)
	Puts an object in the property bag, which is the extended data for the message, apart from the message content. This data is stored with the message but is not delivered along with it. It can be used to drive any special handling required for the message, but standard handlers ignore it. More...

object	GetProperty (string propertyName)
	Dips into the property bag and returns the extended data with the given name. More...

List< DeliveryStatus >	GetHistoryByProtocol (MessagingProtocols protocol)
	Gets sublist of delivery status messages that match the requested protocol sorted by timestamp (ascending). More...

void	GetObjectData (SerializationInfo info, StreamingContext context)
	The serializing method for binary data. More...

System.Xml.Schema.XmlSchema	GetSchema ()
	This method is a no-op. We have opted to use the System.Xml.Serialization.XmlSchemaProviderAttribute instead. More...

void	ReadXml (System.Xml.XmlReader reader)
	Deserializes object data from XML format. More...

void	WriteXml (System.Xml.XmlWriter writer)
	Serializes object data to XML format. More...

Protected Member Functions
	Message (SerializationInfo info, StreamingContext context)
	Deserializes a message from binary format. More...

virtual void	OnReadXml (System.Xml.XmlReader reader)
	The virtual plug-in point for XML deserialization, for subclasses to participate. More...

virtual void	OnWriteXml (System.Xml.XmlWriter writer)
	The virtual plug-in point for XML serialization, for subclasses to participate. More...

Properties
Guid	Id `[get]`
	Gets the auto-generated unique ID for this message. More...

string	Queue `[get, protected set]`
	Gets the designated queue for the message. This provides scope isolation within the messaging system and can be used to securely partition storage space between different security contexts (eg: two banks using the same server can have their messages segregated by queue, each with its own exclusive permissions). More...

MessageType	Type `[get, protected set]`
	The category to which this message belongs. This provides message routing within the message handling control structures. See MessageType for details about each type. More...

string	Subject `[get, protected set]`
	Gets the brief summary or topic for the message. More...

string	Body `[get, protected set]`
	Gets the content of the message. More...

string	BodyAsHTML `[get]`
	Gets the content of the message wrapped in an HTML document. More...

string	InitiatingProcess `[get, protected set]`
	Gets the name of the process (or class and method) that created the notification request for this message. This information is included as an auditing and statistical analysis metric. More...

string	InitiatingUser `[get, protected set]`
	Gets the name of the user identity under which the InitiatingProcess is executing. Thei information is included as an auditing and statistical analysis metric. More...

List< DeliveryStatus >	DeliveryHistory `[get]`
	Gets the whole unsorted list of delivery status entries for the life of the message. More...

string	AuditID `[get]`
	Returns the Audit Identification value that can be used to track this message. More...

string	Hostname `[get]`
	The hostname of the system where the message was originally created. More...

string	Text `[get]`
	Returns the Body and AuditID concatenated together. More...

Detailed Description

This class provides the data structure for both outgoing (queued) and archived messages.

Constructor & Destructor Documentation

◆ Message() [1/3]

Apac.Messaging.Message.Message	(	string	queue,
		MessageType	type,
		string	subject,
		string	body,
		string	initiatingProcess,
		string	initiatingUser
	)

inline

Creates a new message instance.

Parameters

queue	The isolated partition to which the message is destined.
type	The type of content in the message. See MessageType.
subject	A short summary of the message indicating its purpose.
body	The content of the message.
initiatingProcess	The name of the process (or class) that sent the notification.
initiatingUser	The name of the user running the process that sent the notification.

◆ Message() [2/3]

Apac.Messaging.Message.Message ( )

inline

Parameterless constructor provided for XML serialization.

◆ Message() [3/3]

Apac.Messaging.Message.Message	(	SerializationInfo	info,
		StreamingContext	context
	)

inlineprotected

Deserializes a message from binary format.

Parameters

info	See SerializationInfo.
context	See StreamingContext.

Member Function Documentation

◆ AddProperty()

void Apac.Messaging.Message.AddProperty	(	string	propertyName,
		object	data
	)

inline

Puts an object in the property bag, which is the extended data for the message, apart from the message content. This data is stored with the message but is not delivered along with it. It can be used to drive any special handling required for the message, but standard handlers ignore it.

Parameters

propertyName	The name of the property to be stored.
data	The data to be stored for the property. The data object must support serialization and XML serialization or the message will fail to persist the property with the rest of the message.

Exceptions

ArgumentException If the property already exists in the property bag.

◆ GetHistoryByProtocol()

List<DeliveryStatus> Apac.Messaging.Message.GetHistoryByProtocol ( MessagingProtocols protocol )

inline

Gets sublist of delivery status messages that match the requested protocol sorted by timestamp (ascending).

Parameters

protocol The protocol for which status entries are wanted.

Returns: Returns a subset of the delivery status history filtered by the given protocol.

◆ GetObjectData()

void Apac.Messaging.Message.GetObjectData	(	SerializationInfo	info,
		StreamingContext	context
	)

inline

The serializing method for binary data.

Parameters

info	See SerializationInfo.
context	See StreamingContext.

◆ GetProperty()

object Apac.Messaging.Message.GetProperty ( string propertyName )

inline

Dips into the property bag and returns the extended data with the given name.

Parameters

propertyName The name of the property to retrieve.

Returns: Returns the object data for propertyName or null if the property is not in the bag.

◆ GetSchema()

System.Xml.Schema.XmlSchema Apac.Messaging.Message.GetSchema ( )

inline

This method is a no-op. We have opted to use the System.Xml.Serialization.XmlSchemaProviderAttribute instead.

Returns: Returns null.

◆ OnReadXml()

virtual void Apac.Messaging.Message.OnReadXml ( System.Xml.XmlReader reader )

inlineprotectedvirtual

The virtual plug-in point for XML deserialization, for subclasses to participate.

Parameters

reader The System.Xml.XmlReader containing the serialized data.

◆ OnWriteXml()

virtual void Apac.Messaging.Message.OnWriteXml ( System.Xml.XmlWriter writer )

inlineprotectedvirtual

The virtual plug-in point for XML serialization, for subclasses to participate.

Parameters

writer The System.Xml.XmlWriter receiving the serialized data.

◆ ReadXml()

void Apac.Messaging.Message.ReadXml ( System.Xml.XmlReader reader )

inline

Deserializes object data from XML format.

Parameters

reader The System.Xml.XmlReader containing the serialized data.

◆ WriteXml()

void Apac.Messaging.Message.WriteXml ( System.Xml.XmlWriter writer )

inline

Serializes object data to XML format.

MessageType Apac.Messaging.Message.Type

getprotected set

The category to which this message belongs. This provides message routing within the message handling control structures. See MessageType for details about each type.

The documentation for this class was generated from the following file:

/var/lib/jenkins/workspace/apac/APAC/APACCore/Messaging/Message.cs
