Provides an in-memory representation of an element that is being acted on by the system. More...

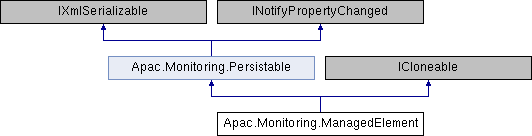

Inheritance diagram for Apac.Monitoring.ManagedElement:

Public Member Functions
string	ColorAsHex ()
	Converts the Color to hexidecimal. More...

void	ColorFromHex (string argb)
	Converts the Color from hexidecimal. More...

void	ClearMappings ()

void	AddMapping (MeasurementMapping mapping)

void	RemoveMapping (MeasurementMapping mapping)

void	RemoveMappingAt (int index)

MeasurementMapping	MappingAt (int index)

void	SetMappingAt (int index, MeasurementMapping mapping)

ManagedElement	Clone ()

override string	ToString ()

Public Member Functions inherited from Apac.Monitoring.Persistable
System.Xml.Schema.XmlSchema	GetSchema ()
	This property is reserved, apply the T:System.Xml.Serialization.XmlSchemaProviderAttribute to the class instead. More...

void	ReadXml (System.Xml.XmlReader reader)
	Generates an object from its XML representation. More...

void	WriteXml (System.Xml.XmlWriter writer)
	Converts an object into its XML representation. More...

Protected Member Functions
override void	OnReadXml (System.Xml.XmlReader reader)
	Deserializes a mapping from XML. More...

override void	OnWriteXml (System.Xml.XmlWriter writer)
	Serializes a mapping to XML. More...

Protected Member Functions inherited from Apac.Monitoring.Persistable
virtual void	OnPropertyChanged (string name)
	Called when [property changed]. More...

Properties
uint	Id `[get, set]`
	The unique key for the managed element. More...

string	Name `[get, set]`
	The name of the managed element. More...

string	Description `[get, set]`
	A verbose description of the managed element. More...

bool	IsSource `[get, set]`
	Indicates the number of phases in the circuit being measured. This is only applicable to circuit-type measurements (ECOP v1). More...

System.Drawing.Color	Color `[get, set]`
	The presentation color for the element. More...

string	HexColor `[get, set]`
	Gets or sets the hexidecimal value for the color of element. More...

string	PlotStyle `[get, set]`
	The nominal circuit amperage. This is only applicable to circuit-type measurements (ECOP v1). More...

string	FormulaType `[get, set]`

Data.IMeasurementFormula	Formula `[get]`

string	Category `[get, set]`
	Gets or sets a value useful for sorting elements and their associated measurements into cache buckets. More...

string	CategoryCompare `[get]`
	Gets a cached upper-case version of Category. More...

List< MeasurementMapping >	Mappings `[get, set]`

int?	NumberOfMappings `[get]`

bool	IsActive `[get, set]`

List< Threshold >	Thresholds `[get, set]`

Properties inherited from Apac.Monitoring.Persistable
bool	IsNew `[get, set]`
	Gets or sets a value indicating whether this instance is new. More...

bool	IsDirty `[get, set]`
	Gets or sets a value indicating whether this instance is dirty. More...

bool	IsDeleted `[get, set]`
	Gets or sets a value indicating whether this instance is deleted. More...

object	Tag `[get, set]`
	Gets or sets an arbitrary value that application code can use to track application specific data on an instance of this type. More...

Additional Inherited Members
Events inherited from Apac.Monitoring.Persistable
PropertyChangedEventHandler	PropertyChanged
	Occurs when a property value changes. More...

Detailed Description

Provides an in-memory representation of an element that is being acted on by the system.

Member Function Documentation

◆ ColorAsHex()

string Apac.Monitoring.ManagedElement.ColorAsHex ( )

inline

Converts the Color to hexidecimal.

Returns

◆ ColorFromHex()

void Apac.Monitoring.ManagedElement.ColorFromHex ( string argb )

inline

Converts the Color from hexidecimal.

◆ OnReadXml()

override void Apac.Monitoring.ManagedElement.OnReadXml ( System.Xml.XmlReader reader )

inlineprotectedvirtual

Deserializes a mapping from XML.

Parameters

reader The reader from which the XML data is read.

Implements Apac.Monitoring.Persistable.

◆ OnWriteXml()

override void Apac.Monitoring.ManagedElement.OnWriteXml ( System.Xml.XmlWriter writer )

inlineprotectedvirtual

Serializes a mapping to XML.

Parameters

writer The writer to which XML is written.

Implements Apac.Monitoring.Persistable.

Property Documentation

◆ Category

string Apac.Monitoring.ManagedElement.Category

getset

Gets or sets a value useful for sorting elements and their associated measurements into cache buckets.

◆ CategoryCompare

string Apac.Monitoring.ManagedElement.CategoryCompare

get

Gets a cached upper-case version of Category.

◆ Color

System.Drawing.Color Apac.Monitoring.ManagedElement.Color

getset

The presentation color for the element.

◆ Description

string Apac.Monitoring.ManagedElement.Description

getset

A verbose description of the managed element.

◆ HexColor

string Apac.Monitoring.ManagedElement.HexColor

getset

Gets or sets the hexidecimal value for the color of element.

◆ Id

uint Apac.Monitoring.ManagedElement.Id

getset

The unique key for the managed element.

◆ IsSource

bool Apac.Monitoring.ManagedElement.IsSource

getset

Indicates the number of phases in the circuit being measured. This is only applicable to circuit-type measurements (ECOP v1).

Indicates that the measurement is for a power source rather than a power load.

◆ Name

string Apac.Monitoring.ManagedElement.Name

getset

The name of the managed element.

◆ PlotStyle

string Apac.Monitoring.ManagedElement.PlotStyle

getset

The nominal circuit amperage. This is only applicable to circuit-type measurements (ECOP v1).

Determines the style of line intersection to use when plotting data for the managed element.

The documentation for this class was generated from the following file:

/var/lib/jenkins/workspace/apac/APAC/APACCore/Monitoring/ManagedElement.cs
