Defines the base contract for an I/O controller that plugs into the system. More...
Public Member Functions | |
| IEnumerable< ControllerDescriptor > | GetDescriptors () |
| Gets the descriptors for the controller, which might include more than one due to some architectures that can have more than one input board, or addressable source, for use during measurement configuration. More... | |
Properties | |
| ushort | Resolution [get] |
| Gets the resolution value, not number of bits. IE: 4096 == 16 bits. More... | |
| ulong[] | SensorIds [get] |
| Gets the identification numbers of the sensors that are actively available to the controller. This helps with system discovery and setup. More... | |
| ushort | PollFrequency [get] |
| Gets the poll frequency (in seconds). More... | |
| ushort | DelayDuration [get] |
| Gets the duration of the delay (in milliseconds). More... | |
Detailed Description
Defines the base contract for an I/O controller that plugs into the system.
Member Function Documentation
◆ GetDescriptors()
| IEnumerable<ControllerDescriptor> Apac.Control.IController.GetDescriptors | ( | ) |
Gets the descriptors for the controller, which might include more than one due to some architectures that can have more than one input board, or addressable source, for use during measurement configuration.
- Returns

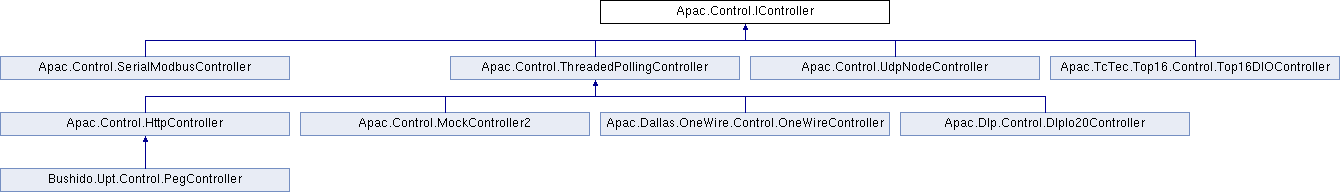

Implemented in Apac.TcTec.Top16.Control.Top16DIOController, Apac.Control.UdpNodeController, Apac.Control.ThreadedPollingController, Apac.Control.SerialModbusController, and Apac.Dlp.Control.DlpIo20Controller.
Property Documentation
◆ DelayDuration
|
get |
Gets the duration of the delay (in milliseconds).
The duration of the delay.
◆ PollFrequency
|
get |
Gets the poll frequency (in seconds).
◆ Resolution
|
get |
Gets the resolution value, not number of bits. IE: 4096 == 16 bits.
◆ SensorIds
|
get |
Gets the identification numbers of the sensors that are actively available to the controller. This helps with system discovery and setup.
Note that not all of these sensors must be mapped to readings, just that they are available via the controller for use as inputs. Also, If the controller is unable to determine if sensors are actually attached, it should just return the list of possible sensor IDs.
The documentation for this interface was generated from the following file:
- /var/lib/jenkins/workspace/apac/APAC/APACCore/Control/IController.cs
