The construct that tracks state for system conditions such as threshold crossings or breakages. More...

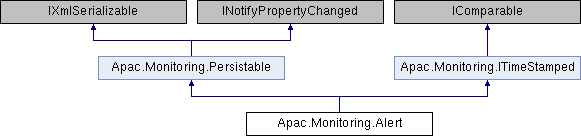

Inheritance diagram for Apac.Monitoring.Alert:

Public Member Functions

Alert (uint id, ManagedElement element, EventDef eventDef, EventDef clearEventDef, string description, DateTime created, DateTime cleared, string clearedBy, uint count)

Initializes a new instance of the Alert class from storage. More...

Alert (ManagedElement element, EventDef eventDef, EventDef clearEventDef, string description)

Initializes a new instance of the Alert class. More...

void Clear (string clearedBy)

Clears this instance by setting the ClearTime. This is a one-time operation.

Parameters

clearedBy A string describing the clearing agent ('user', 'system', etc).

More...

bool Increment ()

Increments the count and sets the timestamp if the alert is cleared, otherwise it does nothing. More...

int CompareTo (object obj)

Compares the current instance with another object of the same type and returns an integer that indicates whether the current instance precedes, follows, or occurs in the same position in the sort order as the other object. More...

Public Member Functions inherited from Apac.Monitoring.Persistable

System.Xml.Schema.XmlSchema GetSchema ()

This property is reserved, apply the T:System.Xml.Serialization.XmlSchemaProviderAttribute to the class instead. More...

void ReadXml (System.Xml.XmlReader reader)

Generates an object from its XML representation. More...

void WriteXml (System.Xml.XmlWriter writer)

Converts an object into its XML representation. More...

Protected Member Functions
override void	OnReadXml (System.Xml.XmlReader reader)
	Called when deserializing via XML. More...

override void	OnWriteXml (System.Xml.XmlWriter writer)
	Called when serializing via XML. More...

Protected Member Functions inherited from Apac.Monitoring.Persistable
virtual void	OnPropertyChanged (string name)
	Called when [property changed]. More...

Properties
uint	Id `[get, set]`
	Gets or sets the id. More...

ManagedElement	Element `[get]`
	Gets the element to which the alert applies. More...

string	ElementName `[get]`
	Gets the name of the element. More...

uint	ElementId `[get]`
	Gets the element id. More...

EventDef	Event `[get]`
	Gets the event that caused the alert. More...

EventDef	ClearEvent `[get]`
	Gets the event def to fire when the alert clears. More...

string	Description `[get, set]`
	Gets or sets the description. More...

DateTime	ClearTime `[get]`
	Gets the time the alert was cleared. More...

DateTime	LastTime `[get]`
	Gets the last time the alert was in force. More...

string	ClearedBy `[get]`
	Gets the agent that cleared the alert ('user', 'system', etc). More...

TimeSpan	Duration `[get]`
	Gets the duration that the alert was active. If it is still active (ie: not cleared) then duration will be TimeSpan.Zero. More...

bool	IsCleared `[get]`
	Gets a value indicating whether this instance is cleared. More...

uint	Count `[get]`
	Gets the number of times this alert has been triggered before it cleared. More...

DateTime	Timestamp `[get]`
	Gets the timestamp. More...

int	Bucket `[get]`
	Gets the bucket, which is a five minute period. There are 12 buckets in an hour and 288 buckets in a day. More...

int	Offset `[get]`
	Gets the offset into the bucket in seconds. More...

Properties inherited from Apac.Monitoring.Persistable
bool	IsNew `[get, set]`
	Gets or sets a value indicating whether this instance is new. More...

bool	IsDirty `[get, set]`
	Gets or sets a value indicating whether this instance is dirty. More...

bool	IsDeleted `[get, set]`
	Gets or sets a value indicating whether this instance is deleted. More...

object	Tag `[get, set]`
	Gets or sets an arbitrary value that application code can use to track application specific data on an instance of this type. More...

Properties inherited from Apac.Monitoring.ITimeStamped
DateTime	Timestamp `[get]`
	Gets the timestamp. More...

int	Bucket `[get]`
	Gets the bucket, which is a five minute period. There are 12 buckets in an hour and 288 buckets in a day. More...

int	Offset `[get]`
	Gets the offset into the bucket in seconds. More...

Additional Inherited Members
Events inherited from Apac.Monitoring.Persistable
PropertyChangedEventHandler	PropertyChanged
	Occurs when a property value changes. More...

Detailed Description

The construct that tracks state for system conditions such as threshold crossings or breakages.

Constructor & Destructor Documentation

◆ Alert() [1/2]

Apac.Monitoring.Alert.Alert	(	uint	id,
		ManagedElement	element,
		EventDef	eventDef,
		EventDef	clearEventDef,
		string	description,
		DateTime	created,
		DateTime	cleared,
		string	clearedBy,
		uint	count
	)

inline

Initializes a new instance of the Alert class from storage.

Parameters

id	The ID of the alert.
element	The element.
eventDef	The event def to fire when the alert occurs.
clearEventDef	The event def to fire when the alert clears.
description	The description.
created	The time the alert was created.
cleared	The time the alert was cleared.
clearedBy	The agent that cleared the alert.
count	The number of times this alert was triggered before it cleared.

◆ Alert() [2/2]

Apac.Monitoring.Alert.Alert	(	ManagedElement	element,
		EventDef	eventDef,
		EventDef	clearEventDef,
		string	description
	)

inline

Initializes a new instance of the Alert class.

Parameters

element	The element.
eventDef	The event def.
clearEventDef	The clear event def.
description	The description.

Member Function Documentation

◆ Clear()

void Apac.Monitoring.Alert.Clear ( string clearedBy )

inline

Clears this instance by setting the ClearTime. This is a one-time operation.

Parameters

clearedBy A string describing the clearing agent ('user', 'system', etc).

◆ CompareTo()

int Apac.Monitoring.Alert.CompareTo ( object obj )

inline

Compares the current instance with another object of the same type and returns an integer that indicates whether the current instance precedes, follows, or occurs in the same position in the sort order as the other object.

Parameters

obj	An object to compare with this instance.

Returns: A 32-bit signed integer that indicates the relative order of the objects being compared. The return value has these meanings: Value Meaning Less than zero This instance is less than obj . Zero This instance is equal to obj . Greater than zero This instance is greater than obj .

Exceptions

T:System.ArgumentException obj is not the same type as this instance.

◆ Increment()

bool Apac.Monitoring.Alert.Increment ( )

inline

Increments the count and sets the timestamp if the alert is cleared, otherwise it does nothing.

◆ OnReadXml()

override void Apac.Monitoring.Alert.OnReadXml ( System.Xml.XmlReader reader )

inlineprotectedvirtual

Called when deserializing via XML.

Parameters

reader The reader.

Implements Apac.Monitoring.Persistable.

◆ OnWriteXml()

override void Apac.Monitoring.Alert.OnWriteXml ( System.Xml.XmlWriter writer )

inlineprotectedvirtual

Called when serializing via XML.

Parameters

writer The writer.

Implements Apac.Monitoring.Persistable.

Property Documentation

◆ Bucket

int Apac.Monitoring.Alert.Bucket

get

Gets the bucket, which is a five minute period. There are 12 buckets in an hour and 288 buckets in a day.

◆ ClearedBy

string Apac.Monitoring.Alert.ClearedBy

get

Gets the agent that cleared the alert ('user', 'system', etc).

The cleared by.

◆ ClearEvent

EventDef Apac.Monitoring.Alert.ClearEvent

get

Gets the event def to fire when the alert clears.

The event.

◆ ClearTime

DateTime Apac.Monitoring.Alert.ClearTime

get

Gets the time the alert was cleared.

The clear time.

◆ Count

uint Apac.Monitoring.Alert.Count

get

Gets the number of times this alert has been triggered before it cleared.

The count.

◆ Description

string Apac.Monitoring.Alert.Description

getset

Gets or sets the description.

The description.

◆ Duration

TimeSpan Apac.Monitoring.Alert.Duration

get

Gets the duration that the alert was active. If it is still active (ie: not cleared) then duration will be TimeSpan.Zero.

◆ Element

ManagedElement Apac.Monitoring.Alert.Element

get

Gets the element to which the alert applies.

The element.

◆ ElementId

uint Apac.Monitoring.Alert.ElementId

get

Gets the element id.

◆ ElementName

string Apac.Monitoring.Alert.ElementName

get

Gets the name of the element.

The name of the element.

◆ Event

EventDef Apac.Monitoring.Alert.Event

get

Gets the event that caused the alert.

The event.

◆ Id

uint Apac.Monitoring.Alert.Id

getset

Gets or sets the id.

The id.

◆ IsCleared

bool Apac.Monitoring.Alert.IsCleared

get

Gets a value indicating whether this instance is cleared.

true if this instance is cleared; otherwise, false.

◆ LastTime

DateTime Apac.Monitoring.Alert.LastTime

get

Gets the last time the alert was in force.

◆ Offset

int Apac.Monitoring.Alert.Offset

get

Gets the offset into the bucket in seconds.

◆ Timestamp

DateTime Apac.Monitoring.Alert.Timestamp

get

Gets the timestamp.

The documentation for this class was generated from the following file:

/var/lib/jenkins/workspace/apac/APAC/APACCore/Monitoring/Alert.cs
