Models an average created from previously calculated averages by using a weight associated with each average. More...

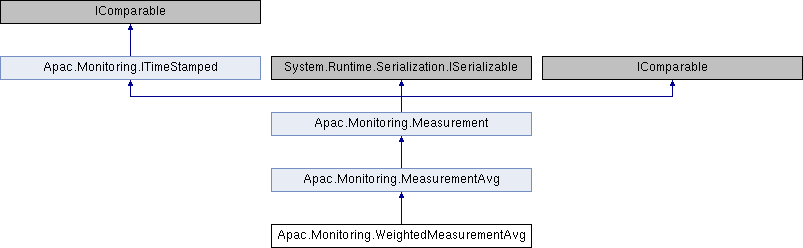

Inheritance diagram for Apac.Monitoring.WeightedMeasurementAvg:

Public Member Functions
	WeightedMeasurementAvg ()
	Initializes a new instance of the WeightedMeasurementAvg class. More...

	WeightedMeasurementAvg (ManagedElement element, string fullSource)
	Creates a new instance for tracking averages and defaults the timestamp to the current time. More...

	WeightedMeasurementAvg (DateTime timestamp, ManagedElement element, string fullSource)
	Creates a new instance for tracking averages. More...

	WeightedMeasurementAvg (DateTime timestamp, ManagedElement element, uint sampleCount, decimal value, string fullSource)
	Creates a new instance from an existing average and sample count. More...

void	Add (uint weight, decimal average)
	Adds another measurement to be averaged along with its weight (ie: the number of values used to find the average in the first place). More...

override void	Add (decimal measurement)
	Overrides the base implementation to include a default weight of one. More...

override void	Add (ushort measurement)
	Overrides the base implemenation to include a default weight of one. More...

Public Member Functions inherited from Apac.Monitoring.MeasurementAvg
	MeasurementAvg (ManagedElement element, string fullSource)
	Creates a new instance for tracking averages and defaults the timestamp to the current time. More...

	MeasurementAvg (DateTime timestamp, ManagedElement element, string fullSource)
	Creates a new instance for tracking averages. More...

	MeasurementAvg (SerializationInfo info, StreamingContext context)

override string	ToString ()

override void	GetObjectData (SerializationInfo info, StreamingContext context)
	Populates a T:System.Runtime.Serialization.SerializationInfo with the data needed to serialize the target object. More...

Public Member Functions inherited from Apac.Monitoring.Measurement
	Measurement (DateTime timestamp, ManagedElement element)

	Measurement (DateTime timestamp, ManagedElement element, decimal compiledValue, string fullSource)

void	AddReading (Reading reading)
	Adds a reading. More...

void	AddSourceMeasurement (Measurement sourceMeasurement)
	Adds a source measurement. More...

Reading	GetReadingByName (string tagName)
	Gets the reading with tagName . More...

Measurement	FindSourceMeasurementByTag (string tag)
	Finds a source measurement by tag. More...

virtual decimal	GetAggregateSourceValue ()
	Provides an easy way for subclasses to define the aggregate source value, in the event that there are multiple readings. This value may not be meaningful for all measurements. More...

void	Abort ()
	Aborts the measurement. More...

bool	IsAborted ()
	Determines if the measurement has been aborted. More...

override string	ToString ()
	Returns a System.String that represents this instance. More...

int	CompareTo (object obj)
	Compares the current instance with another object of the same type. More...

Protected Member Functions
	WeightedMeasurementAvg (SerializationInfo info, StreamingContext context)
	Initializes a new instance of the WeightedMeasurementAvg class. More...

Protected Member Functions inherited from Apac.Monitoring.Measurement
	Measurement (SerializationInfo info, StreamingContext context)
	Creates a measurement and sets its timestamp to 'now'. More...

virtual int	OnCompareTo (object obj)
	Called when [compare to]. More...

Additional Inherited Members
Static Public Attributes inherited from Apac.Monitoring.Measurement
static readonly string	TimestampFormat = "yyyymmddThhMMss.ffffffzzz"

Protected Attributes inherited from Apac.Monitoring.MeasurementAvg
decimal	_sum = 0

uint	_sampleCount = 0

Properties inherited from Apac.Monitoring.MeasurementAvg
override decimal	CompiledValue `[get]`
	The current calculated average for this instance (sum/count). As measurements are added, this property value could change. More...

uint	SampleCount `[get]`
	The number of samples used to create this weighted average. More...

Properties inherited from Apac.Monitoring.Measurement
ManagedElement	Element `[get]`

Reading[]	Readings `[get]`
	Gives subclasses access to the list of readings. More...

Measurement[]	SourceMeasurements `[get]`
	Gives subclasses access to the list of source measurements. More...

int	ReadingCount `[get]`
	Gets the reading count. More...

int	SourceMeasurementCount `[get]`
	Gets the source measurement count. More...

uint?	ElementId `[get]`
	Gets the identifier of the element to which this measurement applied. More...

virtual decimal	CompiledValue `[get, set]`
	Gets or sets the compiled value. More...

DateTime	Timestamp `[get, set]`

string	TimestampISO `[get]`
	Gets the timestamp in ISO string format. More...

int	Bucket `[get]`
	Gets the bucket to which the measurement belongs. More...

int	Offset `[get]`
	Gets the time offset (in seconds) into the bucket to which this measurement belongs. More...

string	FullSource `[get]`
	Gets the name source for this measurement instance. More...

string	UnitLabel `[get, set]`
	Gets or sets a value indicating whether this instance is aggregate. More...

object	Tag `[get, set]`
	Aggregates the specified compiled addition to the current compiled value and flags this instance as aggregated (IsAggregate == `true`). More...

Properties inherited from Apac.Monitoring.ITimeStamped
DateTime	Timestamp `[get]`
	Gets the timestamp. More...

int	Bucket `[get]`
	Gets the bucket, which is a five minute period. There are 12 buckets in an hour and 288 buckets in a day. More...

int	Offset `[get]`
	Gets the offset into the bucket in seconds. More...

Detailed Description

Models an average created from previously calculated averages by using a weight associated with each average.

Constructor & Destructor Documentation

◆ WeightedMeasurementAvg() [1/5]

Apac.Monitoring.WeightedMeasurementAvg.WeightedMeasurementAvg ( )

inline

Initializes a new instance of the WeightedMeasurementAvg class.

◆ WeightedMeasurementAvg() [2/5]

Apac.Monitoring.WeightedMeasurementAvg.WeightedMeasurementAvg	(	ManagedElement	element,
		string	fullSource
	)

inline

Creates a new instance for tracking averages and defaults the timestamp to the current time.

Parameters

element	The element to which this average applies.
fullSource	The source of the measurement.

◆ WeightedMeasurementAvg() [3/5]

Apac.Monitoring.WeightedMeasurementAvg.WeightedMeasurementAvg	(	DateTime	timestamp,
		ManagedElement	element,
		string	fullSource
	)

inline

Creates a new instance for tracking averages.

Parameters

element	The element to which this average applies.
timestamp	The timestamp of the average.
fullSource	The source of the measurement.

◆ WeightedMeasurementAvg() [4/5]

Apac.Monitoring.WeightedMeasurementAvg.WeightedMeasurementAvg	(	DateTime	timestamp,
		ManagedElement	element,
		uint	sampleCount,
		decimal	value,
		string	fullSource
	)

inline

Creates a new instance from an existing average and sample count.

Parameters

element	The element to which this average applies.
timestamp	The timestamp of the average.
sampleCount	The number of samples used to create the average.
value	The average value.
fullSource	The source of the measurement.

◆ WeightedMeasurementAvg() [5/5]

Apac.Monitoring.WeightedMeasurementAvg.WeightedMeasurementAvg	(	SerializationInfo	info,
		StreamingContext	context
	)

inlineprotected

Initializes a new instance of the WeightedMeasurementAvg class.

Parameters

info	The info.
context	The context.

Member Function Documentation

◆ Add() [1/3]

override void Apac.Monitoring.WeightedMeasurementAvg.Add ( decimal measurement )

inlinevirtual

Overrides the base implementation to include a default weight of one.

Parameters

measurement The measurement to include in the average.

Reimplemented from Apac.Monitoring.MeasurementAvg.

◆ Add() [2/3]

void Apac.Monitoring.WeightedMeasurementAvg.Add	(	uint	weight,
		decimal	average
	)

inline

Adds another measurement to be averaged along with its weight (ie: the number of values used to find the average in the first place).

Parameters

weight	The number of values used to find an average.
average	The average value to be included.

◆ Add() [3/3]

override void Apac.Monitoring.WeightedMeasurementAvg.Add ( ushort measurement )

inlinevirtual

Overrides the base implemenation to include a default weight of one.

Parameters

measurement The measurement to inclue in the average.

Reimplemented from Apac.Monitoring.MeasurementAvg.

The documentation for this class was generated from the following file:

/var/lib/jenkins/workspace/apac/APAC/APACCore/Monitoring/WeightedMeasurementAvg.cs
